Product Introduction
G11G-11 glass epoxy resin shares many similarities with G-10. It is made from halogen-free epoxy resin and woven glass fiber substrate. It also exhibits excellent mechanical strength at high temperatures and good insulating strength under both humid and dry conditions. Compared to G-10, G-11 glass epoxy resin can withstand higher temperatures. Its insulating performance is also slightly better than that of G-10. G-11 is resistant to dimensional changes, flow, and chemicals. It has low moisture absorption. There are two types of G-11. One is designed to operate at 150 degrees Celsius (Class F), and the other at 180 degrees Celsius (Class H). When specifying G-11, ensure that the grade you choose is suitable for your intended operating environment.
kelly@ls-dz.com
Specifications:* Product Name: G11 Epoxy Fiberglass Laminated Sheet
* Available Size: 1020*1220mm; 1220*2040mm; 1220*2440mm; 1020*2040mm; 1020*2040mm or customized.
* Thickness: 0.1mm~250mm.
* Color: Green, Natural, Yellow, Black etc.
Applications:Our products are widely used in many different areas like photovoltaic panel, new energy vehicles, electronics, transformers, medical equipments, mold support, testing board backing, polishing jig, heating plate and so on.
Our Product Advantages:* Durable and tough. It can be ground, shaped, and polished
*High mechanical & electrical strength,
*Excellent rigidity & dimensional stability
*Good dielectric properties
*Lower water absorption
*Better thickness tolerance
*Flat and straight panel
*Smooth and clean surface.
*Easy to machine
*Temperature Index: Heat resistance up to 155°C without major impact on the mechanical properties
*OEM/ODM services available.

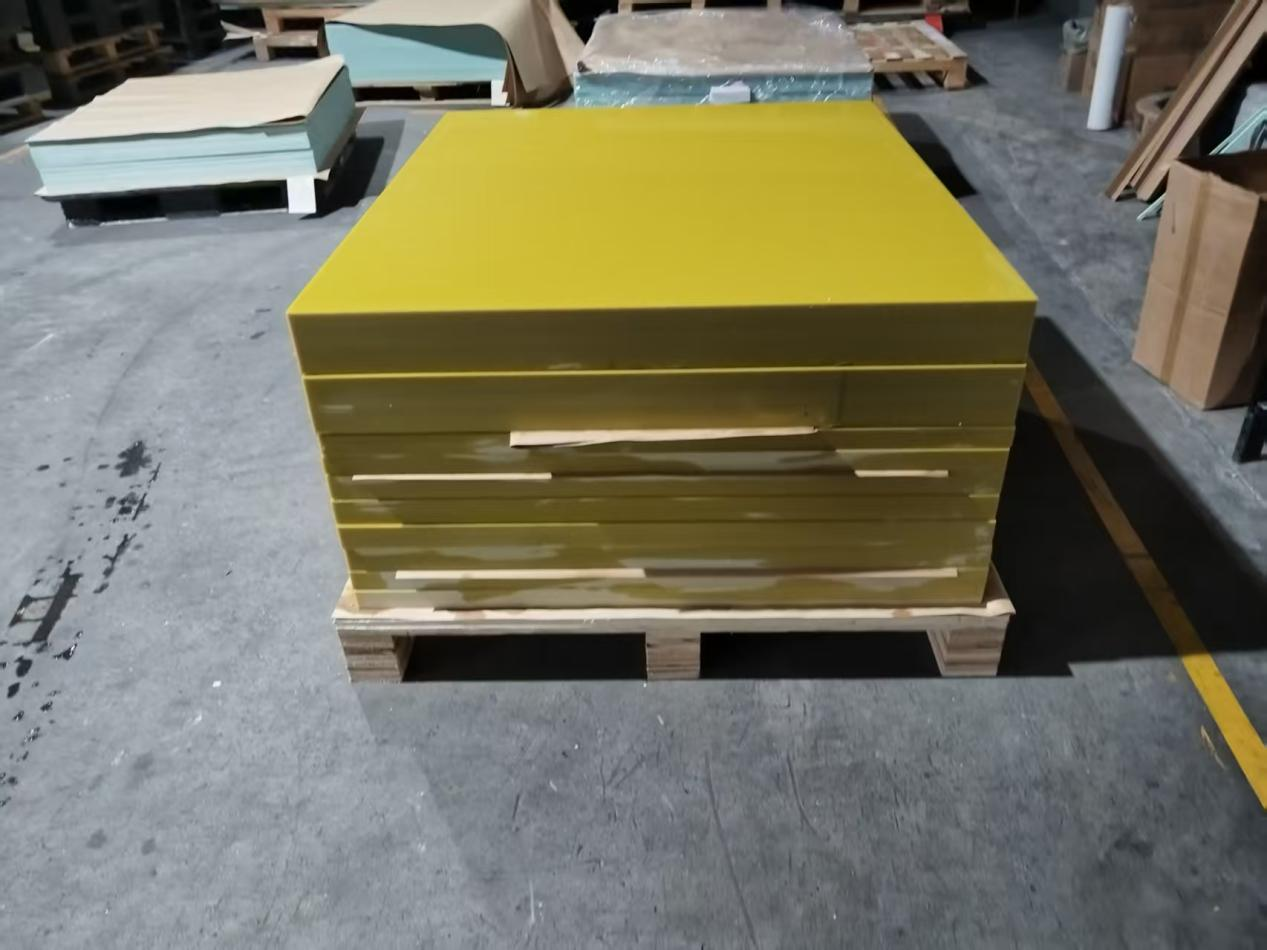

Our Package:
