FR4 G10 epoxy fiberglass insulation board product catalog - Bluesun MaterialIntroduzione al prodotto

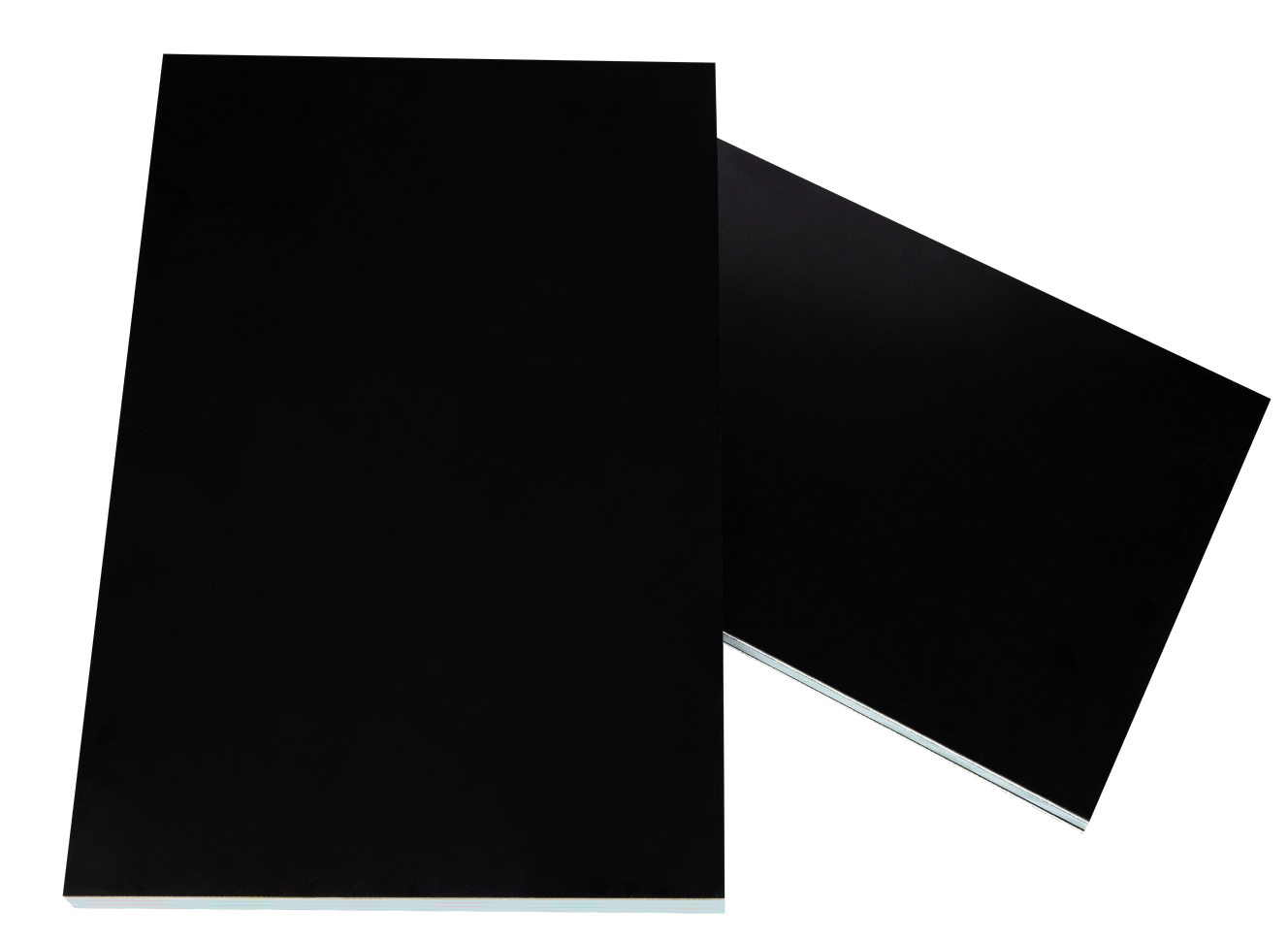

Lastra antistatica ESD G10/FR4

REACH Certified Insulation Sheet ManufacturerRoHS Compliant FR4 G10 Insulation Sheet

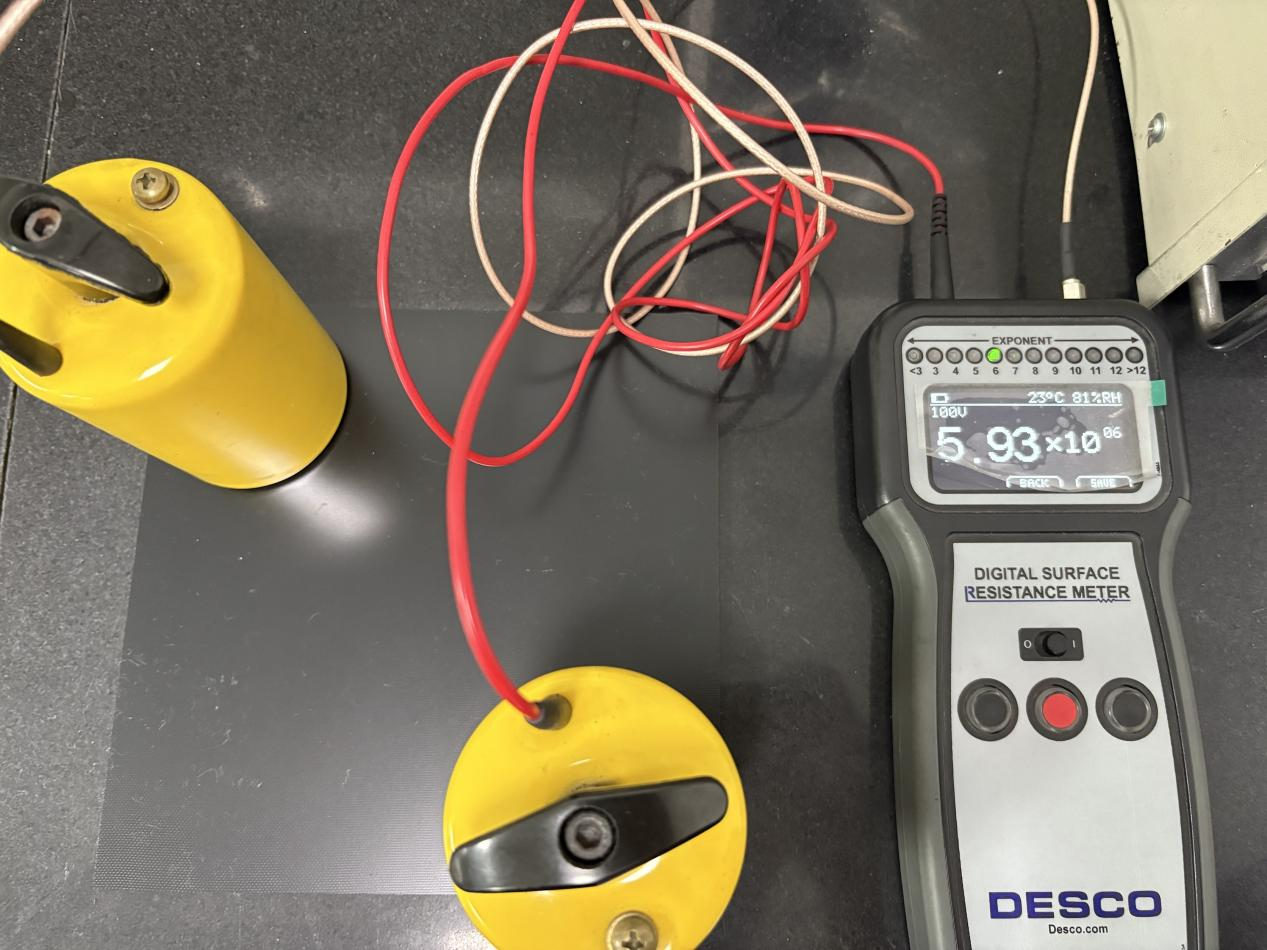

AntistaticoEccellente effetto antistatico, valore di resistenza superficiale: 10⁶-10⁹ Ω, alte prestazioni meccaniche, buone prestazioni di lavorazione. Buona resistenza al calore e all'umidità, buone prestazioni elettriche a umido e a secco;
wade@ls-dz.com
Dettagli del prodotto
Specifiche:* Nome del prodotto: Foglio laminato in fibra di vetro epossidica antistatica * Dimensioni disponibili: 1020*1220mm; 1220*2040mm; 1220*2440mm; 1020*2040mm; 1020*2040mm o personalizzate. * Spessore: 0,1 mm ~ 250 mm. * Colore: Verde, Naturale, Giallo, Nero, Bianco ecc.
Applicazioni:I nostri prodotti sono ampiamente utilizzati in molti settori diversi come pannelli fotovoltaici, veicoli a nuova energia, elettronica, trasformatori, apparecchiature mediche, supporto stampi, supporto schede di test, dime di lucidatura, piastre riscaldanti e così via.
Vantaggi del nostro prodotto:* Durevole e resistente. Può essere levigato, modellato e lucidato * Alta resistenza meccanica ed elettrica * Eccellente rigidità e stabilità dimensionale * Buone proprietà dielettriche * Minore assorbimento d'acqua * Migliore tolleranza di spessore * Pannello piatto e dritto * Superficie liscia e pulita * Facile da lavorare * Indice di temperatura: Resistenza al calore fino a 130°C senza impatto significativo sulle proprietà meccaniche * Servizi OEM/ODM disponibili.

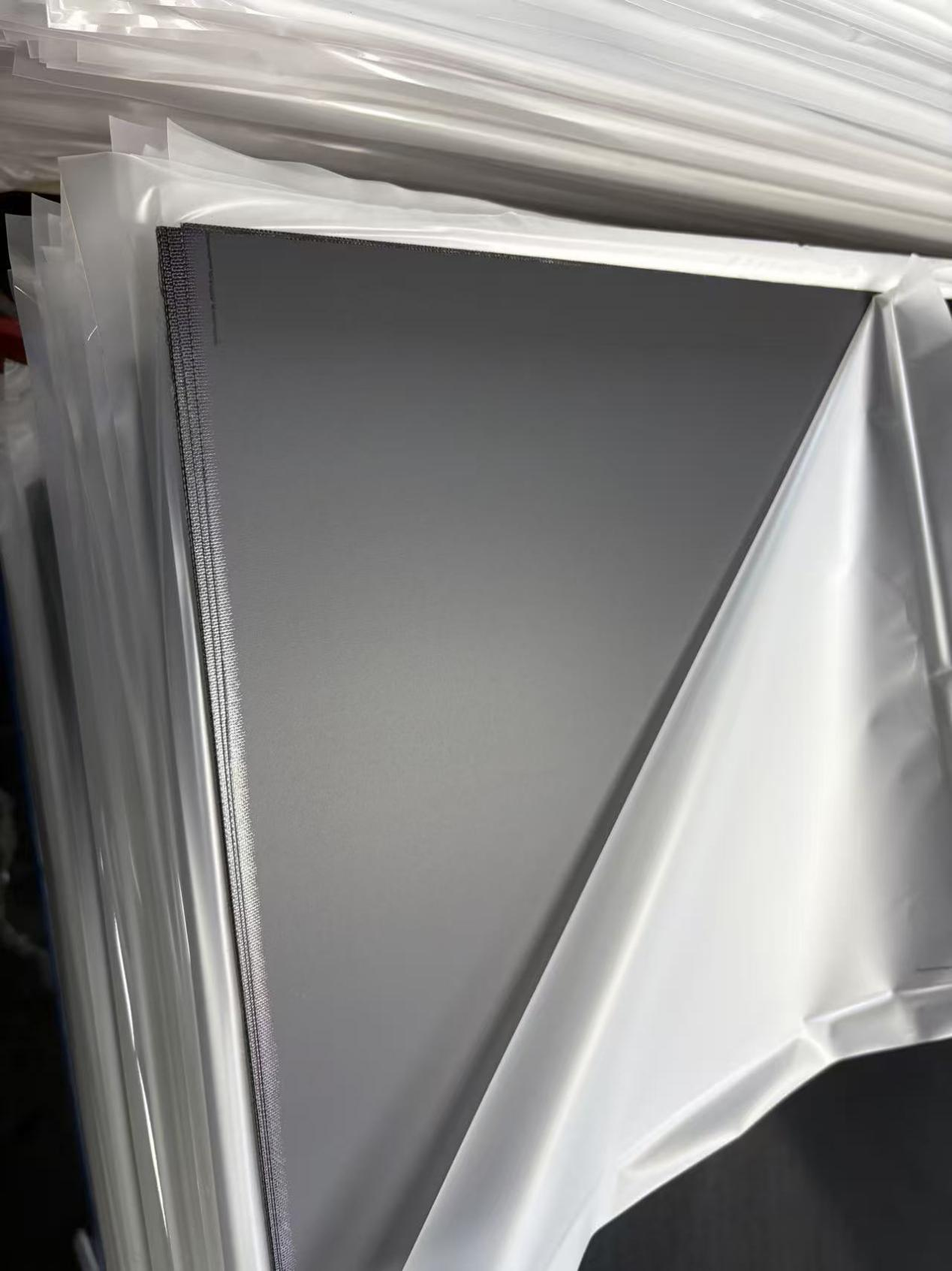

Il nostro imballaggio:ESD Anti-Static G10 FR4 Board PackagingESD Anti-Static G10 FR4 Board Packaging

Electrical Insulation Laminates: Technical Comparison & Selection Guide

Compare physical, thermal, and dielectric specifications across NEMA and IEC standard epoxy fiberglass grades (FR-4, G-10, G-11, FR-5, Anti-Static, and 3240) to choose the optimal material for your application.

Quick Summary: How to Choose Between FR4, G10, and G11

FR-4 is the worldwide standard flame-retardant (UL 94 V-0) epoxy laminate rated to 130°C–140°C, required for PCB substrates and consumer electronics. G-10 is the halogen-free, non-flame retardant version offering higher mechanical rigidity, lower moisture absorption, and superior machinability for structural and cryogenic use. G-11 is a Class H high-temperature variant maintaining over 50% flexural strength at 150°C–180°C for transformers and motors. FR-5 pairs UL 94 V-0 flame rating with 155°C–180°C thermal endurance for aerospace. Anti-Static grades dissipate electrostatic charges (10⁶–10⁹ Ω/sq) for sensitive semiconductor and SMT fixtures.

Grade / StandardThermal IndexFlame RatingDielectric StrengthFlexural StrengthKey Distinction & Primary Use
FR-4 (NEMA LI 1) 130°C – 140°CUL 94 V-0≥ 16 – 20 kV/mm≥ 340 MPaSelf-extinguishing; standard for PCB drill entry/backing, switchgear, terminals.
G-10 (Garolite) 130°CNon-flame (HB)≥ 18 – 22 kV/mm≥ 350 MPaHalogen-free, high rigidity; ideal for marine, cryogenic, knife handles, jigs.
G-11 (Class H) 180°C ContinuousUL 94 HB / V-0≥ 18 – 22 kV/mm≥ 400 MPaRetains >50% strength at 150°C; used in power transformers and traction motors.
FR-5 (High-Tg) 155°C – 180°CUL 94 V-0≥ 18 – 22 kV/mm≥ 380 MPaHigh thermal resistance + flame retardant; aerospace, military, power electronics.
Anti-Static ESD 130°CUL 94 V-0 / HBESD 10⁶–10⁹ Ω/sq≥ 300 MPaStable static dissipation; semiconductor test sockets, SMT pallet fixtures.
3240 (GB / IEC) 130°C – 155°CStandard≥ 14 – 18 kV/mm≥ 300 MPaCost-effective high voltage insulation; distribution cabinets, busbar supports.

Frequently Asked Questions About Epoxy Insulation Materials

What is the main difference between FR4 and G10?

The primary difference is flame retardancy: FR-4 contains brominated flame-retardant additives that comply with UL 94 V-0 self-extinguishing ratings. In contrast, G-10 is non-flame retardant (UL 94 HB) and halogen-free. G-10 is preferred where halogen restrictions apply or in mechanical/cryogenic applications where flame inhibitors are unnecessary.

When should I specify G11 instead of FR4 or G10?

Specify G-11 when your operating environment exceeds 130°C. Standard FR4 and G10 lose significant mechanical rigidity above 130°C. G11 retains more than 50% of its initial flexural strength at continuous temperatures up to 180°C, making it essential for high-stress dry-type transformers, traction equipment, and Class H electric motors.

What sheet dimensions and thickness tolerances are available?

Standard sheet sizes include 1020×1220mm, 1020×2040mm, 1220×2040mm, and 1220×2440mm. Thicknesses range from 0.1mm ultra-thin sheets up to 250mm thick blocks. Thickness tolerances comply with NEMA and IEC standards, with custom thickness and precision sanding available upon request.

Does Hangzhou Bluesun support custom CNC machining?

Yes, Hangzhou Bluesun Electronic Materials operates advanced multi-axis CNC routers, precision engraving centers, and waterjet cutters. We fabricate custom insulation components such as slot wedges, transformer spacers, test fixtures, and busbar insulators with tight tolerances up to ±0.05mm from customer CAD/DXF drawings.
